Forced air cooling
Aluminium cylinders with ceramic nickel-silicon hardened bore coating, built for sustained high-power operation.
1 / 3FQ-730CC

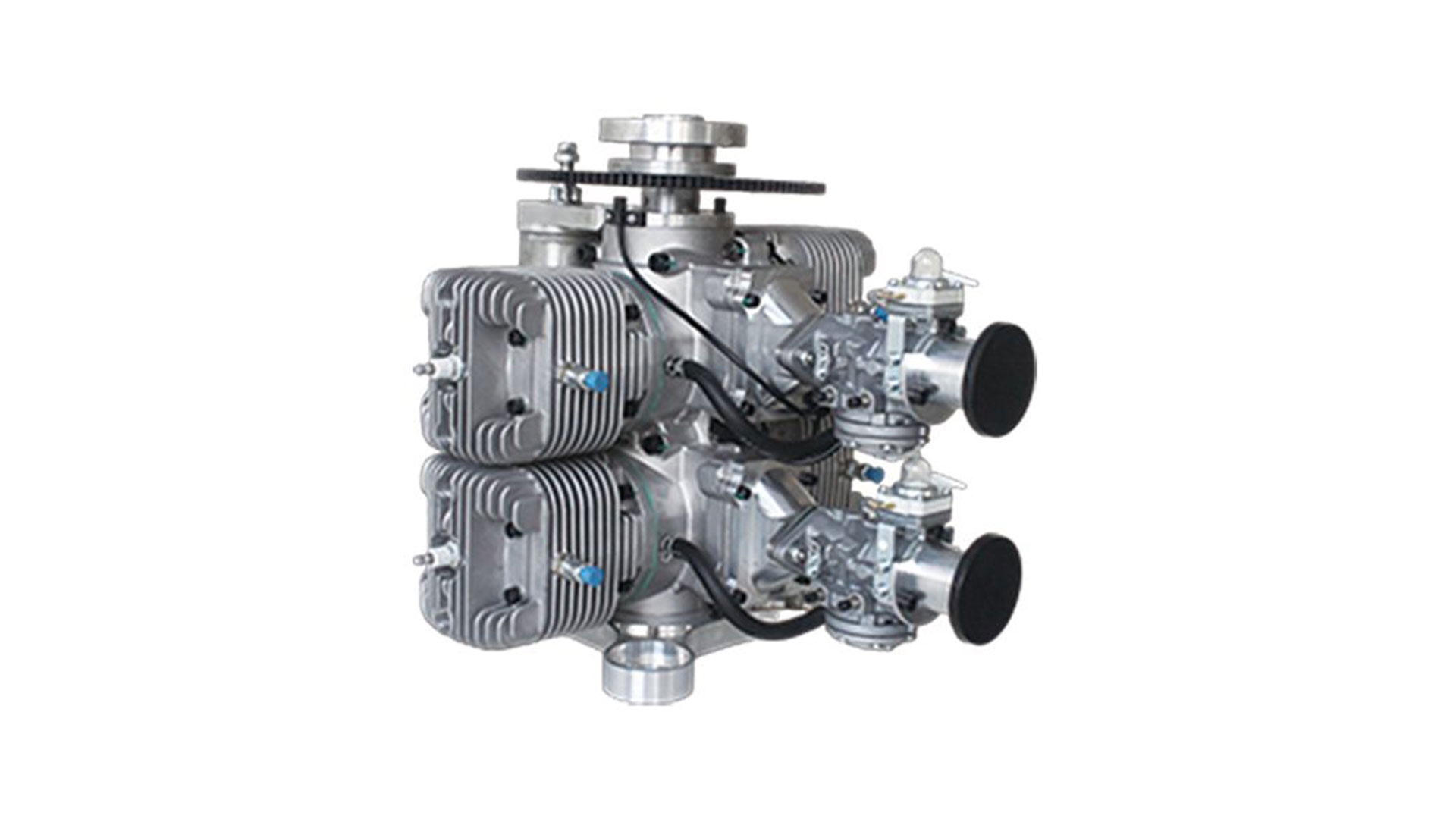

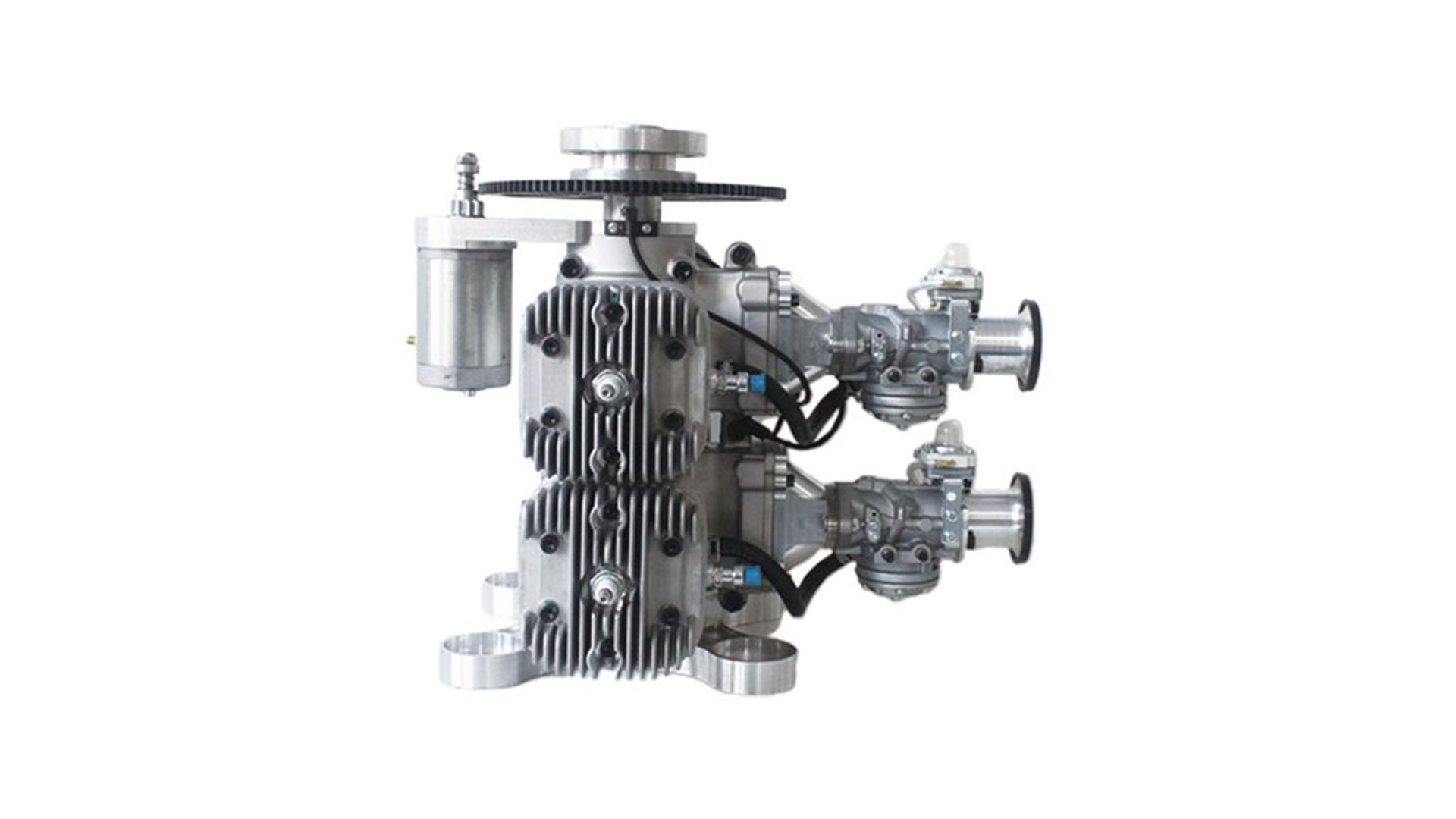

FQ-730 Aviation Engine
Horizontally opposed, 4-cylinder
The FQ-730 is an aviation-grade, air-cooled two-stroke engine with a horizontally opposed four-cylinder layout. Solid-state magneto ignition and premix lubrication deliver stable output under heavy load and in demanding conditions. Every engine is dynamometer-tested and flight-verified before delivery, backed by worldwide technical support.
- 47.3 kWMax power
- 75 kgStatic thrust (100 m)
- 730 ccDisplacement
- 18.5 kgWeight
Core Technology
Engineered for Demanding Environments
Horizontally opposed, air-cooled two-stroke layouts with CDI ignition and premix lubrication.
Solid-state magneto ignition
CDI automatic-advance ignition with synchronized opposed-cylinder firing and automatic transition at 500 rpm.
Forged seven-piece crankshaft
High-strength yet lightweight, with optimized vibration damping for a long service life.
Wide speed range (2000–7500 rpm)
Balances low-speed torque with high-rpm power and suits a range of propellers.
Specifications
Specifications
Every figure is dynamometer-verified to aviation-grade standards.
- Engine model
- FQ-730CC
- Layout
- Horizontally opposed, 4-cylinder
- Stroke
- Two-stroke
- Displacement
- 730 cc
- Bore × stroke
- 66 mm × 54 mm
- Power
- 63.5 hp / 47.3 kW
- Speed range
- 2000–7500 rpm
- Static thrust (100 m)
- 75 kg
- Static thrust (1800 m)
- 70 kg
- Max takeoff weight
- 270 kg
- Recommended propeller
- 32×20; 30×23; 30×25
- Weight
- 18.5 kg
- Crankshaft
- Forged, seven-piece assembly
- Fuel / oil ratio
- 30:1
- Ignition
- CDI automatic-advance
- Ignition sequence
- Synchronized opposed-cylinder firing, automatic transition at 500 rpm
- Carburettor / EFI
- 2 diaphragm all-position carburettors, no choke / injection port
- Generator
- 800 W / 2000 W
- Piston
- Oval-ground, cast aluminium alloy
- Cylinder
- Cast aluminium alloy, ceramic nickel-silicon hardened bore
- Starter
- Optional
- Fuel consumption (carburettor)
- 17 L/h
- Fuel consumption (EFI)
- 12 L/h
- Options
- Exhaust manifold, starter, generator
- Dimensions (L×W×H)
- 420 × 410 × 370 mm
- Lubrication
- Premix lubrication
- Installation
- Tractor and pusher installations
Engineering Dimensions
Compact, Lightweight Layout
Precise dimensions make integration into an airframe or vehicle straightforward.
420 mmLength
410 mmWidth
370 mmHeight
18.5 kgNet weight
“The FQ-730CC puts powerful, high-efficiency output into every detail — the natural choice for heavy-lift UAVs and large aircraft.”
