Forced air cooling
Aluminium cylinders with ceramic nickel-silicon hardened bore coating, built for sustained high-power operation.
1 / 3FQ-120CC

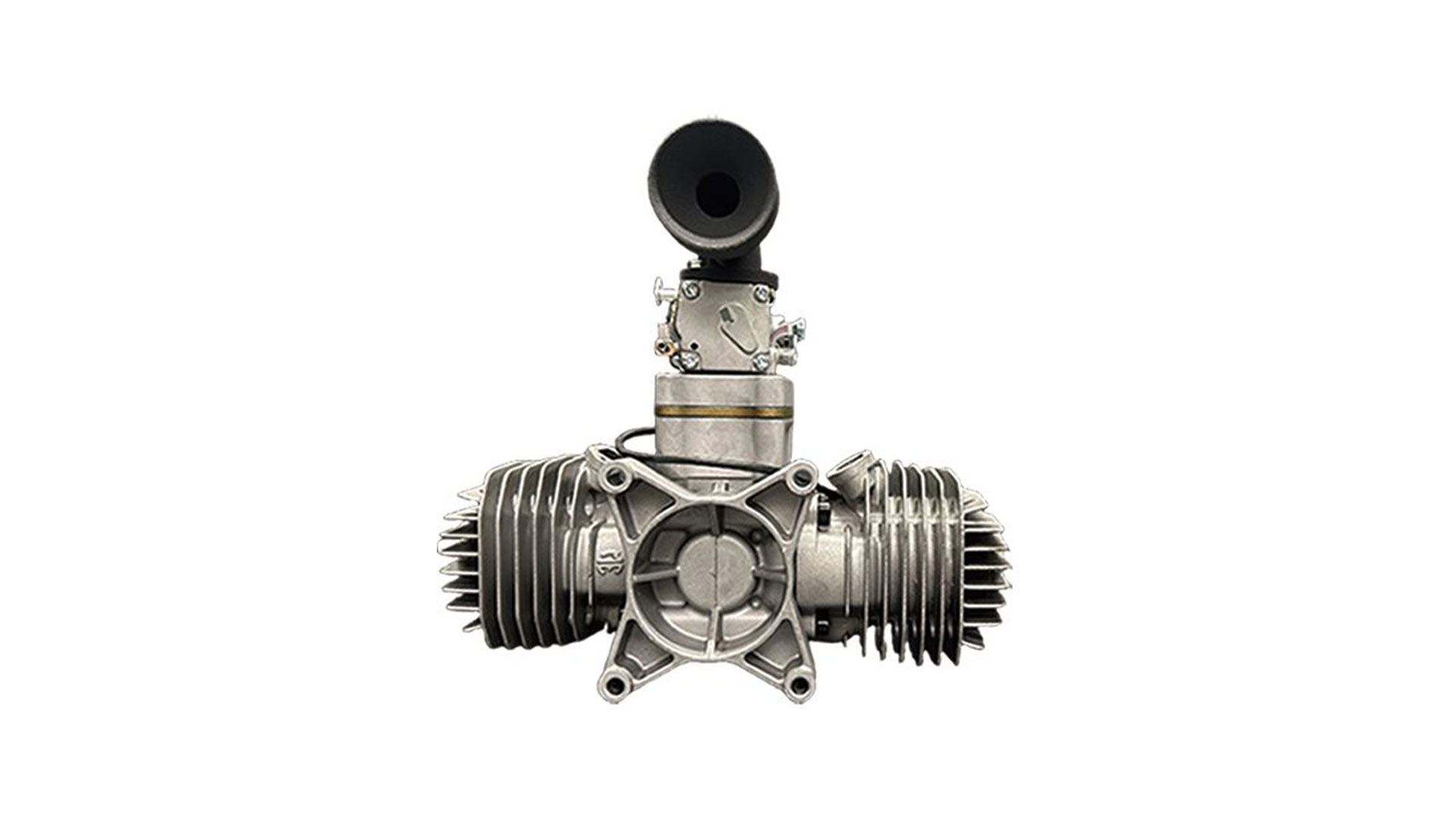

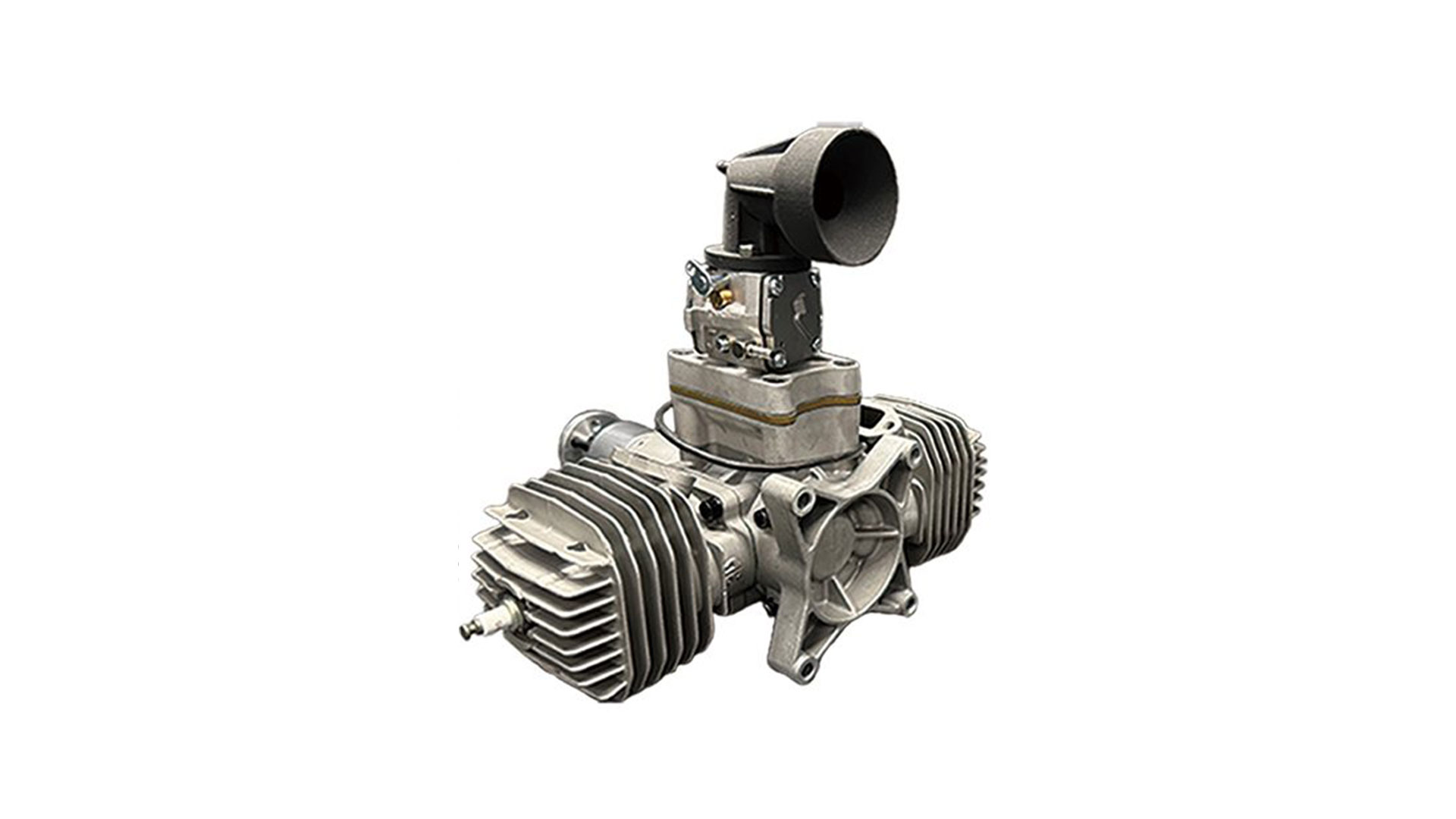

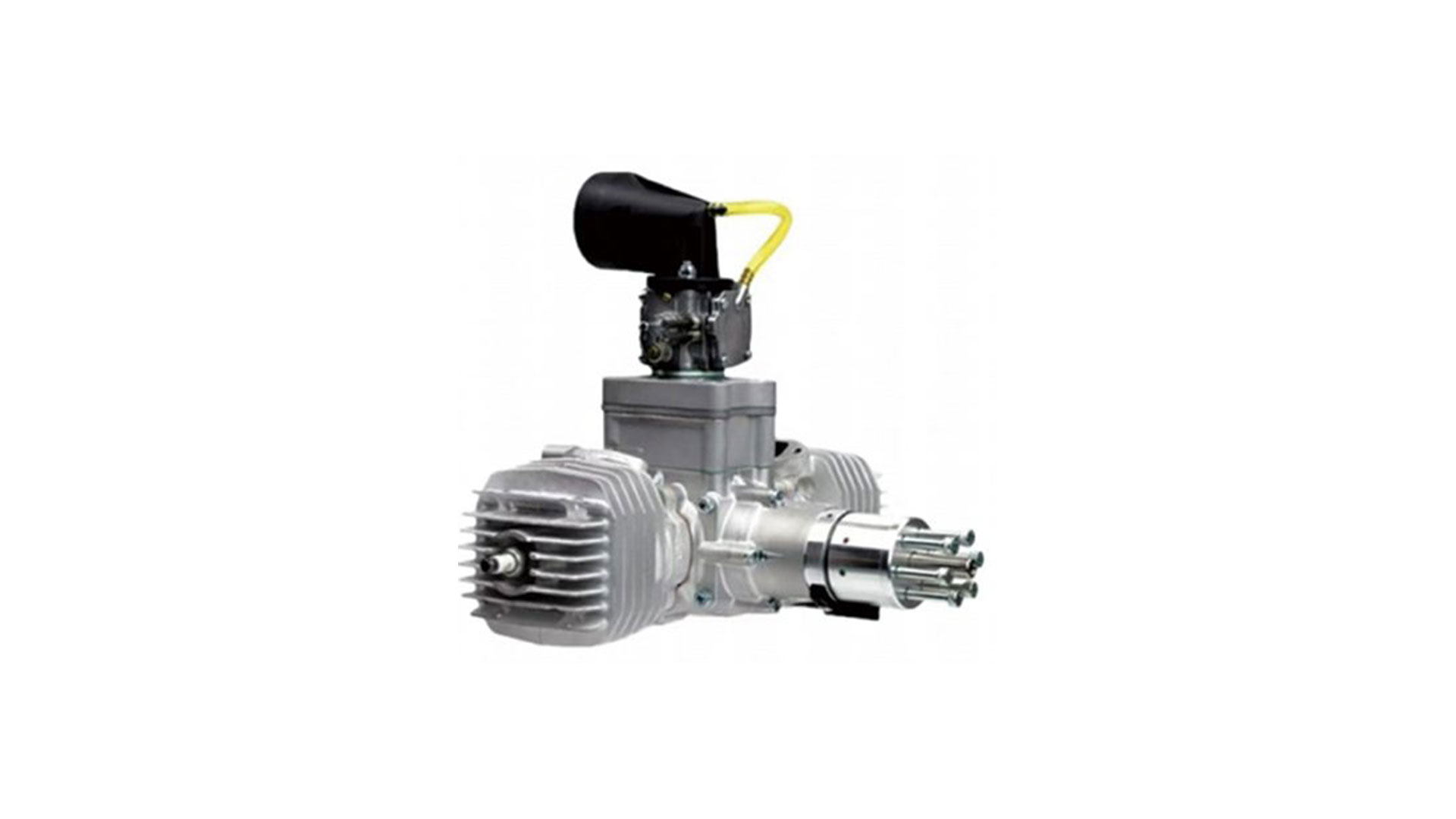

FQ-120 Aviation Engine
Horizontally opposed, twin-cylinder
The FQ-120 is an aviation-grade, air-cooled two-stroke engine with a horizontally opposed twin-cylinder layout. Automatic-advance CDI ignition and premix lubrication deliver stable output at high altitude and under demanding conditions. Every engine is dynamometer-tested and flight-verified before delivery, backed by worldwide technical support.
- 8.25 kWMax power
- 26.5 kgStatic thrust (100 m)
- 120 ccDisplacement
- 3.05 kgWeight
Core Technology
Engineered for Demanding Environments
Horizontally opposed, air-cooled two-stroke layouts with CDI ignition and premix lubrication.
CDI automatic-advance ignition
Precise ignition timing, synchronized opposed-cylinder firing with automatic transition at idle.
Three ball-bearing crankshaft
High-strength and lightweight, with optimized vibration damping for a long service life.
Wide speed range (1300–6500 rpm)
Balances low-speed torque with high-rpm power and suits a range of propellers.
Specifications
Specifications
Every figure is dynamometer-verified to aviation-grade standards.
- Engine model
- FQ-120CC
- Layout
- Horizontally opposed, twin-cylinder
- Stroke
- Two-stroke
- Displacement
- 120 cc
- Bore × stroke
- 45 mm × 35 mm
- Power
- 11.22 hp / 8.25 kW
- Speed range
- 1300–6500 rpm
- Static thrust (100 m)
- 26.5 kg
- Static thrust (1800 m)
- 23.5 kg
- Max takeoff weight
- 60 kg
- Recommended propeller
- 26×10; 26×12; 27×10; 28×10
- Weight
- 3.05 kg
- Crankshaft
- Three ball-bearing crankshaft
- Fuel / oil ratio
- 25:1–30:1
- Ignition
- CDI automatic-advance
- Ignition voltage
- 6.0–8.4 V DC
- Generator
- 600 W
- Fuel consumption (carburettor)
- 4.5 L/h
- Fuel consumption (EFI)
- 3.3 L/h
- Dimensions (L×W×H)
- 285 × 220 × 222 mm
- Lubrication
- Premix lubrication
- Installation
- Tractor and pusher installations
Engineering Dimensions
Compact, Lightweight Layout
Precise dimensions make integration into an airframe or vehicle straightforward.
285 mmLength
220 mmWidth
222 mmHeight
3.05 kgNet weight
“The FQ-120CC puts light, efficient power into every detail — the ideal choice for UAVs and light equipment.”
