Forced air cooling
Aluminium cylinders with ceramic nickel-silicon hardened bore coating, built for sustained high-power operation.
1 / 3FQ-170CC

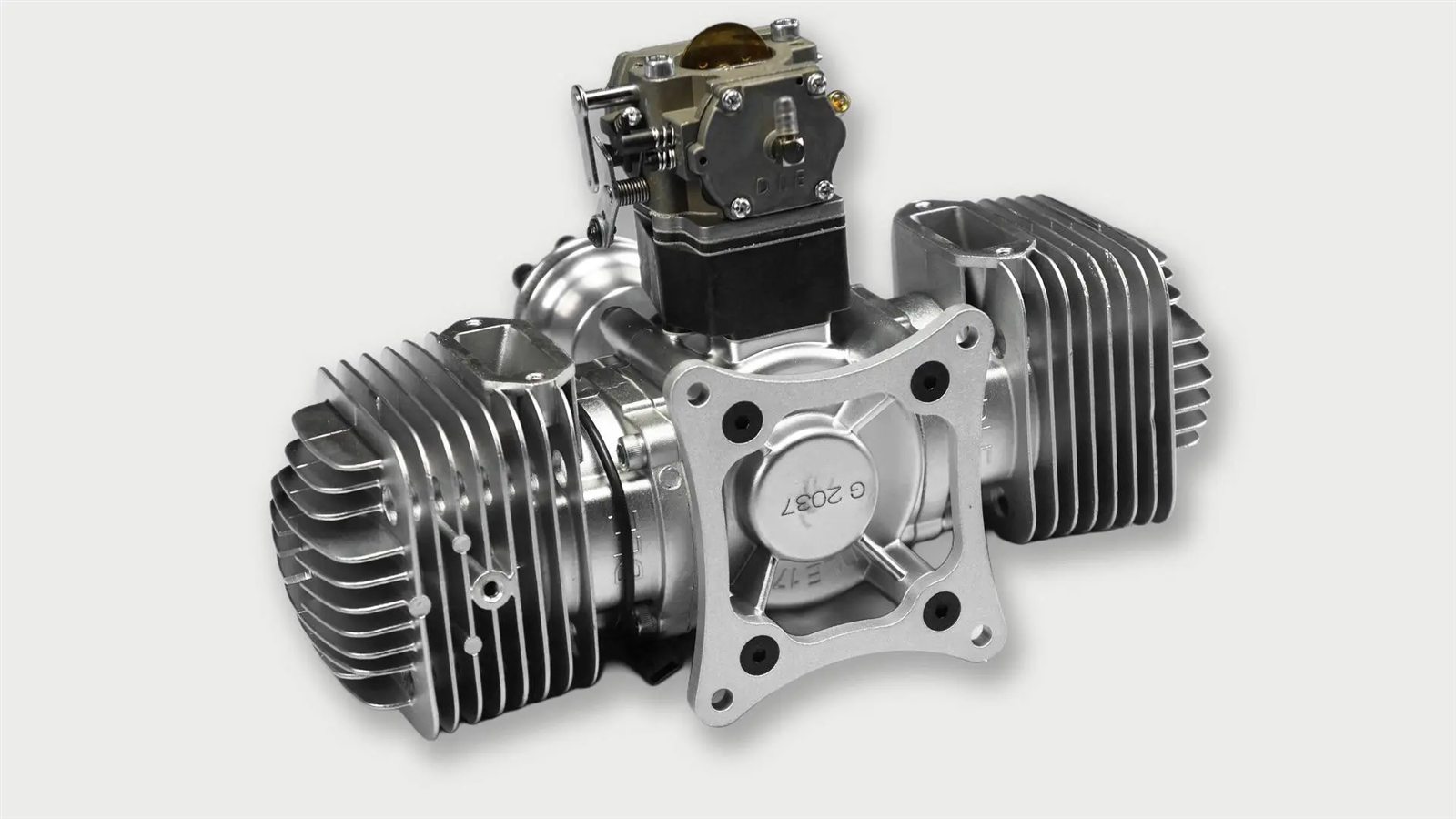

FQ-170 Aviation Engine
Horizontally opposed, twin-cylinder
The FQ-170 is an aviation-grade, air-cooled two-stroke engine with a horizontally opposed twin-cylinder layout. Automatic-advance CDI ignition and premix lubrication deliver stable output at high altitude and under demanding conditions. Every engine is dynamometer-tested and flight-verified before delivery, backed by worldwide technical support.
- 13.3 kWMax power
- 35 kgStatic thrust (100 m)
- 170 ccDisplacement
- 3.93 kgWeight
Core Technology
Engineered for Demanding Environments
Horizontally opposed, air-cooled two-stroke layouts with CDI ignition and premix lubrication.
CDI automatic-advance ignition
Precise ignition timing, synchronized opposed-cylinder firing with automatic transition at idle.
Three-bearing crankshaft
High-strength and lightweight, with optimized vibration damping for a long service life.
Wide speed range (1100–6500 rpm)
Balances low-speed torque with high-rpm power and suits a range of propellers.
Specifications
Specifications
Every figure is dynamometer-verified to aviation-grade standards.
- Engine model
- FQ-170CC
- Layout
- Horizontally opposed, twin-cylinder
- Stroke
- Two-stroke
- Displacement
- 170 cc
- Bore × stroke
- 51 mm × 41 mm
- Power
- 18.1 hp / 13.3 kW
- Speed range
- 1100–6500 rpm
- Static thrust (100 m)
- 35 kg
- Static thrust (1800 m)
- 31.5 kg
- Max takeoff weight
- 80 kg
- Recommended propeller
- 30×12; 32×10
- Weight
- 3.93 kg
- Crankshaft
- Three-bearing crankshaft
- Fuel / oil ratio
- 50:1
- Ignition
- CDI automatic-advance
- Ignition voltage
- 6–8.4 V DC
- Generator
- 600 W
- Fuel consumption (carburettor)
- 6 L/h
- Fuel consumption (EFI)
- 4.5 L/h
- Dimensions (L×W×H)
- 340 × 232 × 190 mm
- Lubrication
- Premix lubrication
- Installation
- Tractor and pusher installations
Engineering Dimensions
Compact, Lightweight Layout
Precise dimensions make integration into an airframe or vehicle straightforward.
340 mmLength
232 mmWidth
190 mmHeight
3.93 kgNet weight
“The FQ-170CC puts light, efficient power into every detail — the ideal choice for UAVs and light equipment.”
